Small-Scale Smoker - 12 Volt

Product Description

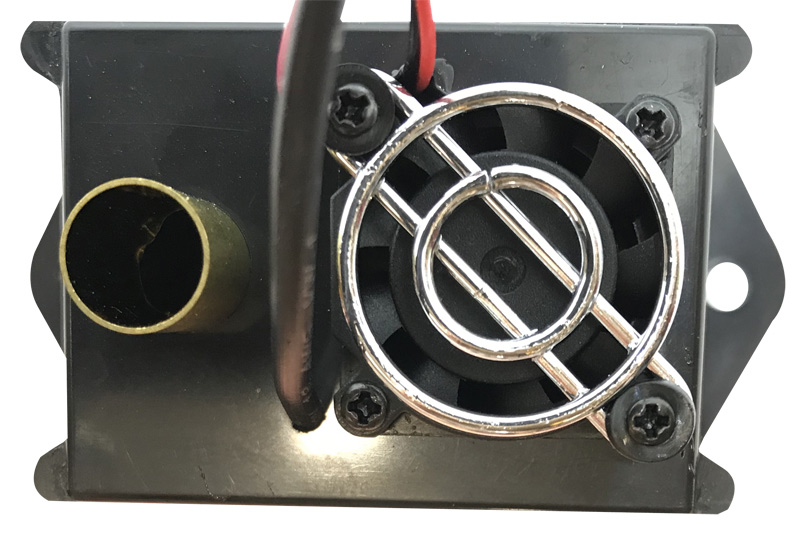

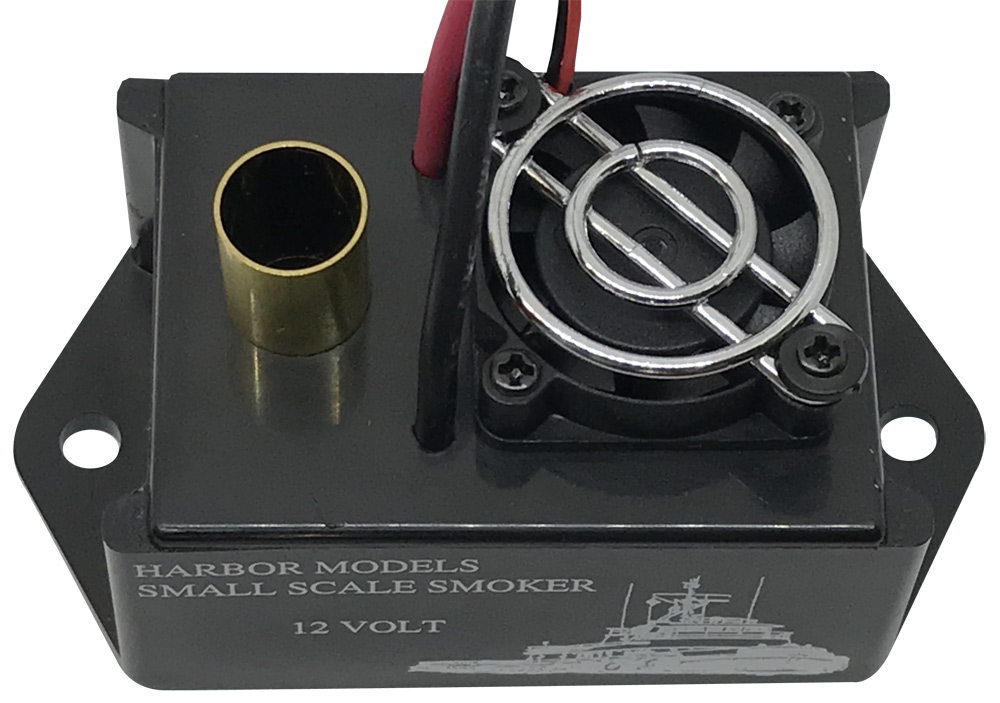

The Harbor Models 12V Small-Scale-Smoker is a great way to add that extra touch of realism to your models. The unit features a brushless bearing fan for efficient and quiet operation, low power consumption, extended run time, compact size and variable output in relation to your motor.
Includes one 2oz bottle of smoke fluid. One bottle will last up to 12 hours of smoke with a dipstick to check fluid level.

Dimensions: 2-1/8" L (2-7/8" with mounting tabs) x 1-1/2" W x 1-1/2" H
Weight: 1.4oz. when filled with fluid
Run time: ~3-1/2 hours on 1/2oz. of fluid
Draw: ~1.2 amps at full throttle Voltage: 12 Volt (In order to accomplish the longer run times and lower power consumption this 12 volt limit is important. If you have any concern that you may be providing your smoke generator more than 12 volts please use a voltage regulator like the one found here: Voltage Regulator
You can also find it below in the accessories list.)
Warranty: All our smoke generators are tested for perfect functionality before shipping. For more information on warranty please download and read the instruction sheet found below.

***FOR CUSTOMERS PLANNING ON USING IN A TRAIN OR OTHER APPLICATION***
You can use this unit in a train but make sure of the following first:
-You must have a constant power source between 11 and 12V
-Make sure to have enough room to install the unit, there needs to be about 1.5-3 inches of room above the fan in order for it to draw the required air flow
-The cavity or area used to install the unit must have air flow, it CANNOT be sealed as the smoker needs air to push through the unit to function

DOWNLOAD INSTRUCTION SHEET
Installation Diagrams: Fixed Output (hooked directly to battery)
Proportional Output (hooked to speed control)
FAQ Sheet Download
For more pictures, installation tips and forum talk about our line of Smoke Generators visit the Facebook page dedicated to smoker users here: Facebook Smoke Generator Page
WARNING The smoke fluid provided with this unit can have health effects if used for extended periods of time in unventilated areas for more information please download the Material Safety Data Sheet below:
MSDS SHEET DOWNLOAD

Accessories

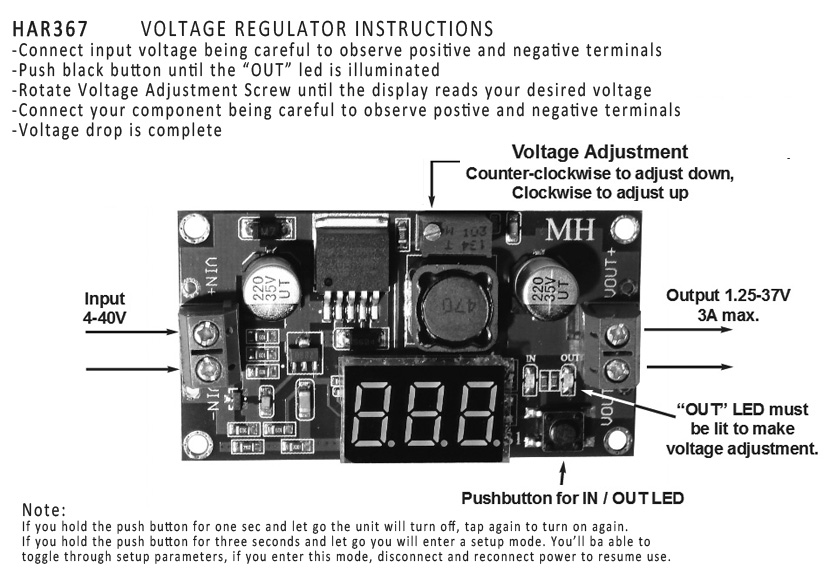

Voltage Regulator

Have a 4-40 volt battery and need to run 6 or 3 volt lights or other functions? Here is the perfect solution. Easily wire in 4-40 volts, dial down the easy-to-read digital meter to whatever voltage you require and hook up the auxiliary function to the output. Simple as that.
Not for use with motors or high current hardware. For larger current draw applications use the Harbor Models' Power Distribution Panel.

Step-Down DC voltage regulator.
Input: 4-40V.
Output: 1.25-37V adjustable, 1.5A continuous current.
3A max.
Digital voltmeter.
Two 2-position screw terminals for easy wire insertion.
Dimensions:
2.6" x 1.4" x 0.5"
Mounting holes.

Download/View Instructions

$19.95

Chuffer Set for Small Smokers

Always wanted the chuffing effect for your smoke output? Now you can have it!

For use with a new or previously owned SMALL SCALE SMOKER, this does not work with the large scale smoke generator.

The set allows you to retrofit your small scale smoker with a secondary fan that will give the output a pulsating chuffer effect.
Simply follow the provided step-by-step instructions on how to install this directly onto your unit.

Here are the instructions to read over: Download Instructions

$16.95

Clear Tubing - 3/8"

Now you can plumb your smoke generator with ease. This clear polyurethane tubing makes avoiding in-hull obstacles simple. The tube also slides right over the smoke generator's output with just the right amount of friction for a tight seal while still allowing for easy removal when re-filling.
I.D.: 3/8"
O.D.: 7/16"
Wall thickness: 1/16"

Sold by the foot
Fits HAR350-6, HAR350-12 Small Scale Smokers

$0.99
