Welcome to Harbor Models Inc.
Happy Hunter Kit
Product Description

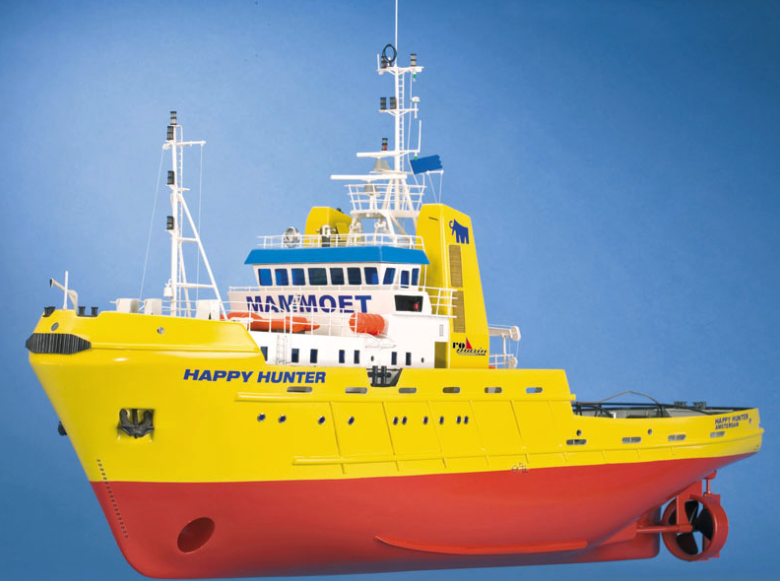

The Happy Hunter is a scale reproduction of a Dutch ocean-going salvage tug to a scale of 1:50.

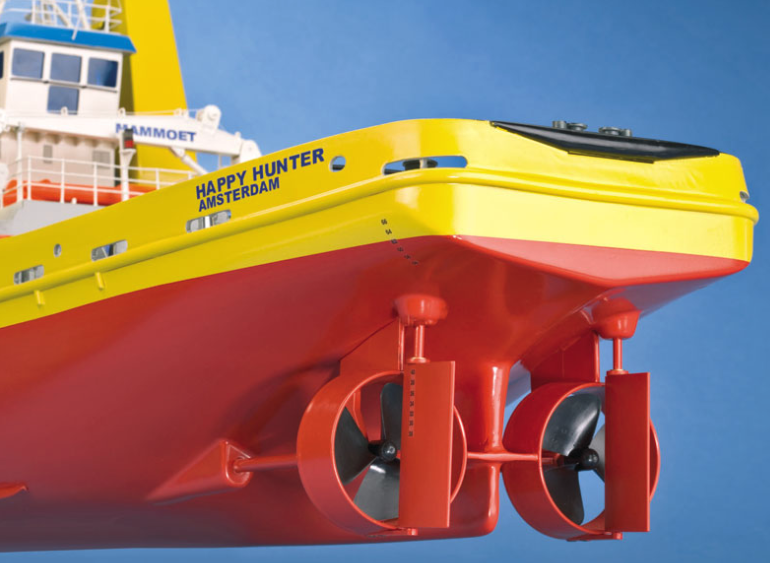

The boat is powered by a direct-drive, i.e. non-geared system, in the form of two high-torque MAX Power 700 electric motors. These are low-revving power plants driving a pair of high-performance marine propellers. Fixed Kort nozzles increase thrust, and the boat is capable of carrying out extremely arduous towing tasks and complex maneuvers in conjunction with the bow thruster, which is an optional accessory. The capacious plastic hull allows the modeler to install numerous auxiliary working systems, and experienced builders will enjoy fitting out the Happy Hunter with a working lighting system, radar, anchor winch, sound system and towing mechanism. It is even possible to install a fully working crane; the crane itself is included in the kit.
Kit Contents:
-Vacuum-moulded white ABS plastic hull and superstructure
-Die-cut parts for deck and superstructure
-Laser-cut parts for power system mountings and electronic component supports
-Complete rudder system
-Injection-moulded Kort nozzles
-Small hardware items
-Components for foremast, mainmast, crane etc.
-Decal sheet
-Building instructions with drawings and photographs
-Boat stand
Specification:
Length: 40 3/4" (1035 mm)
Width: 9 1/4" (235 mm)
Total displacement: 21lbs (9500 g)
Draught: 4 3/4" (120 mm)
Scale: 1:50
Downloads:
ACCESSORY LIST
CONSTRUCTION PHOTOS
BUILDING INSTRUCTIONS- English Only
BUILDING INSTRUCTIONS- All Languages
The boat is powered by a direct-drive, i.e. non-geared system, in the form of two high-torque MAX Power 700 electric motors. These are low-revving power plants driving a pair of high-performance marine propellers. Fixed Kort nozzles increase thrust, and the boat is capable of carrying out extremely arduous towing tasks and complex maneuvers in conjunction with the bow thruster, which is an optional accessory. The capacious plastic hull allows the modeler to install numerous auxiliary working systems, and experienced builders will enjoy fitting out the Happy Hunter with a working lighting system, radar, anchor winch, sound system and towing mechanism. It is even possible to install a fully working crane; the crane itself is included in the kit.
Kit Contents:
-Vacuum-moulded white ABS plastic hull and superstructure
-Die-cut parts for deck and superstructure
-Laser-cut parts for power system mountings and electronic component supports
-Complete rudder system
-Injection-moulded Kort nozzles
-Small hardware items
-Components for foremast, mainmast, crane etc.
-Decal sheet
-Building instructions with drawings and photographs
-Boat stand
Specification:
Length: 40 3/4" (1035 mm)
Width: 9 1/4" (235 mm)
Total displacement: 21lbs (9500 g)
Draught: 4 3/4" (120 mm)
Scale: 1:50
Downloads:
ACCESSORY LIST
CONSTRUCTION PHOTOS
BUILDING INSTRUCTIONS- English Only
BUILDING INSTRUCTIONS- All Languages
Accessories
 Everything you need to deck out your Happy Hunter. Find more information in the Happy Hunter manuals, links provided on the kits item page. $179.95 | |||
 Adapted drive set for the high hopper Happy Hunter ro1106. The high-torque MAX Power 700 motors are connected directly to the ship's shafts. The set contains the two 12V drive motors, including couplings, interference suppression kits, mounting screws and connecting cables. $119.95 | |||

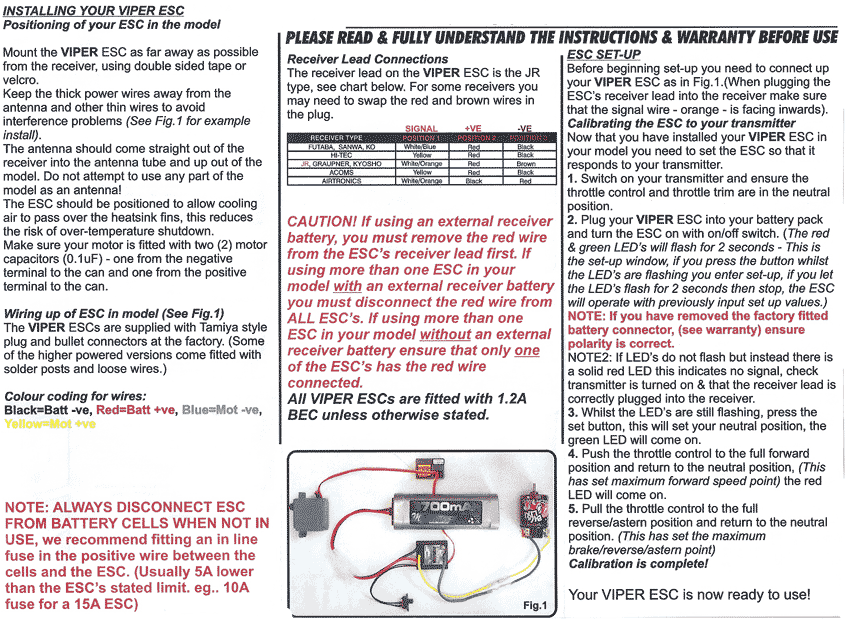

 The Viper Marine25 is a brushed speed control designed specifically for use in RC model boats. It has a 25Amp motor limit, what this means is that you can use any, DC brushed motor, as long as the current drawn by that motor does not exceed 20Amps under load (with the prop connected, under water). The Marine25 is the perfect speed controller for anybody wanting to either upgrade their old speed controller for a no nonsense 25Amp limit reversible electronic speed control or for anybody who uses scale model RC boats at scale speeds. The Marine25 is a popular choice from the ever popular line of Viper marine speed controls, this is due mainly to all the features that are included, such as a built in failsafe, 100% proportional, fine throttle control in both directions, and motor stall protection, which is a feature that cannot be overlooked when a possible encounter with weeds is always just round the corner. Not to forget that the Viper Marine range of speed controllers are all completely 100% waterproof and designed to work on fully charged 12V Lead Acid batteries! Technical Specification: -25A Current limit -100% Waterproof -6-12Volt (Input voltage) -Dimensions: 1-1/2 x 1-3/8 x 1/2" -Power Connection made with Tamiya Connector -Motor Connection made with Bullet Connectors NOT FOR USE WITH A BRUSHLESS MOTOR Click Here for Instructions
$56.95 | |||

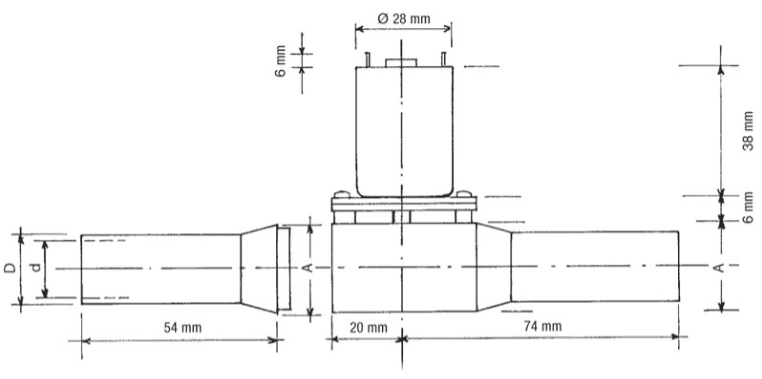

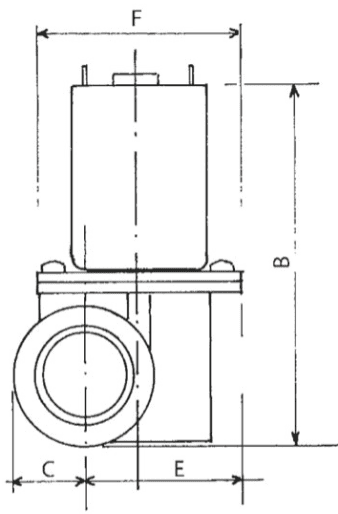

 This powerful bow thruster is supplied fully mounted with a Power 400 7.2-Volt electrical motor. The propulsion is provided by a flat propeller (pedal) which pressurizes the water through the tube whereby the entire assembly functions as a pump. This design is very robust and very stable and requires very little maintenance. The pump housing and the extension tubes are made of ABS (acrylonitrile butadiene styrene). The motor is sealed with a G-ring and an O-ring which prevents the entry of water so the bow thruster can be installed vertically or horizontally. The motor with the pump housing cover can be removed easily. This size is applicable for 36-54" ships with an approximate weight of 30-50 pounds. To be used in conjunction with a mini speed controller; found here Details: Power 400 electrical motor, 7.4 volt. No load RPM: 17,000 No load power consumption: ~0.5 Amps Tube inner diameter: 1" (25mm) Tube outer diameter: 1-1/8" (27.5mm) Length of tube: 6-1/16" (154mm)
 $69.95 | |||
 Length: 5.94" Depth: 1.94" Height: 3.82" Weight: 3.6 lbs. Maintenance-free, rechargeable sealed lead-acid battery. Can be used in any position and can be trickle charged for long periods of time. Excellent for alarms, communications and back-up applications. WILL NOT LEAK. Best charged with a .5 to 1 amp charger. $29.95 |
